The transition from disposable zinc-air batteries to rechargeable lithium-ion power systems represents one of the most significant technological shifts in modern hearing aid design. While rechargeable solutions offer compelling user benefits—eliminating the dexterity challenges of battery replacement, reducing environmental waste, and enabling sealed, waterproof designs—they introduce complex engineering challenges that demand rigorous power budget analysis and validation protocols. This comprehensive checklist provides hearing aid designers, product managers, and engineering teams with the critical considerations and validation methodologies necessary to develop reliable, long-lasting rechargeable hearing aids.
1. Battery Technology Selection and Specifications
1.1 Lithium-Ion Battery Chemistry Selection
Lithium-ion technology has emerged as the dominant choice for rechargeable hearing aids, offering energy densities significantly higher than traditional alternatives. Modern Li-ion cells designed specifically for hearing aids can deliver 24+ hours of use on a single charge, even with wireless streaming and binaural processing enabled. When selecting battery chemistry, designers must evaluate:
Energy Density vs. Form Factor Constraints
Hearing aid batteries must balance capacity requirements against severe space limitations. TWS-style devices may accommodate 30–50 mAh cells, while RIC/BTE formats can support 60–120 mAh. Energy density specifications should target minimum 400 Wh/L to achieve competitive battery life without compromising device ergonomics.
Cycle Life Requirements
Consumer expectations for rechargeable electronics typically exceed 500–800 full charge cycles while maintaining ≥80% of original capacity. For hearing aids with daily charging patterns, this translates to 2–3 years of reliable service life. Battery vendors should provide validated cycle life data under realistic charge/discharge profiles.
Self-Discharge Characteristics
Li-ion cells exhibit self-discharge rates of 2–5% per month at room temperature. For hearing aids that may sit unused for extended periods, low self-discharge variants (<3% monthly) are preferable to ensure sufficient capacity when users need them.
Battery Leakage Current Management
Leakage current from the lithium-ion battery represents a critical yet often overlooked power drain that can significantly impact standby time and long-term reliability. This management circuitry must be implemented directly on the hearing aid's PCBA (Printed Circuit Board Assembly) at the chip level, not within the battery cell itself. Key design considerations include:
- Ultra-Low Quiescent Current Protection ICs: Battery protection circuits integrated on the PCBA should feature quiescent currents below 1 µA to minimize parasitic drain during storage and standby modes. Modern protection ICs with sub-microampere operation ensure that leakage current doesn't compromise weeks-long storage capacity.
- MOSFET Selection for Disconnect Circuitry: The load disconnect switches (typically back-to-back MOSFETs in the protection path) must exhibit extremely low off-state leakage (<100 nA) and minimal on-resistance (<50 mΩ) to prevent both standby drain and active mode voltage drop. Poor MOSFET selection can introduce 5–20 µA of unnecessary leakage.
- PCB Layout Considerations: High-impedance battery monitoring nodes are susceptible to leakage through PCB contamination, humidity absorption in FR-4 substrate, and parasitic coupling. Critical design practices include guard ring implementation around high-impedance traces, conformal coating application over battery management circuitry, and maintaining >3mm creepage distance between battery terminals.
- Fuel Gauge Integration: Coulomb-counting fuel gauge ICs mounted on the PCBA provide accurate state-of-charge estimation but introduce their own quiescent current (typically 5–50 µA depending on update rate). Designers must balance measurement accuracy against power consumption, often implementing adaptive sampling rates that increase frequency only during active discharge periods.
Proper leakage management at the PCBA level can reduce total standby current by 50% or more compared to naive implementations, directly translating to extended shelf life and improved user experience for intermittent hearing aid users.
Safety Certification Requirements
Given the medical device classification and proximity to the human body, battery selection must prioritize safety certifications. Only source cells from manufacturers with demonstrated compliance to IEC 62133 (safety requirements for portable sealed secondary cells) and UN 38.3 (lithium battery transport testing). Internal stress testing validation is essential—hearing aid batteries must withstand extreme conditions without thermal runaway.

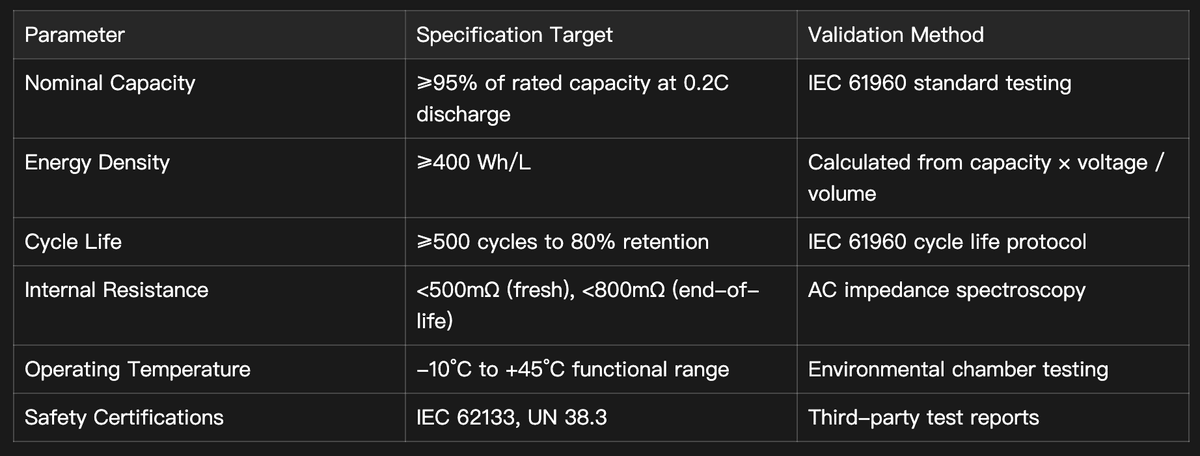

1.2 Battery Cell Specifications Checklist
2. Power Budget Analysis and Modeling
2.1 The Datasheet vs. Reality Gap
One of the most critical yet frequently underestimated challenges in hearing aid power design is the significant discrepancy between datasheet specifications and real-world power consumption. A comprehensive benchmark study of six premium wireless hearing aids revealed that measured current consumption during typical use deviated from datasheet values by 7% to 62% under standard listening conditions. When streaming functionality was activated, this deviation expanded dramatically to a range of 2% to 74%.
This divergence stems from fundamental differences between standardized test modes and actual operational conditions:
Standard Test Mode Limitations
Manufacturer datasheet values are typically derived under idealized test conditions that disable critical adaptive features including feedback suppression, directional microphone processing, and wireless connectivity. These simplifications yield artificially low power consumption figures that fail to represent realistic usage scenarios.
Streaming Power Impact
Bluetooth streaming represents the highest power consumption mode for modern hearing aids. Real-world measurements demonstrate that current draw can double when streaming is active, potentially reducing effective battery life by 50% during continuous media consumption [citation](https://www.audiologyonline.com/articles/battery-consumption-in-wireless-hearing-11899).
2.2 Comprehensive Power Budget Framework
A robust power budget must account for all operational states, transient behaviors, and environmental variations. The following framework provides a structured approach to power modeling:
Core Processing Power
- DSP/SoC Active Processing: 2–8 mA depending on algorithm complexity (WDRC channels, noise reduction, directionality)
- Memory Operations: 0.5–2 mA for RAM refresh and flash access during parameter updates
- Audio Codec: 1–3 mA for ADC/DAC conversion at 16–48 kHz sampling rates
Wireless Subsystem Power
- Bluetooth Classic LE: 3–8 mA during active transmission
- Bluetooth Classic Audio: 5–15 mA depending on codec efficiency (SBC vs. aptX vs. LC3)
- Proprietary 2.4 GHz Protocols: 2–6 mA for hearing aid-to-accessory communication
- Idle/Scanning Modes: 0.5–2 mA when maintaining connection without active data transfer
Sensor and Peripheral Power
- Multi-Microphone Arrays: 0.8–2 mA per MEMS microphone during active operation
- Accelerometer/Motion Sensors: 0.1–0.5 mA for tap detection and activity monitoring
- Environmental Sensors: 0.2–1 mA for humidity, temperature, or UV exposure monitoring
Power Management Overhead
- DC-DC Conversion Losses: 5–15% efficiency penalty depending on topology (buck, boost, LDO)
- Battery Management IC: 0.1–0.5 mA for fuel gauge monitoring and protection circuits
- Leakage Currents: 1–10 µA cumulative from all powered components in sleep states
2.3 Operating Mode Power Budget Template
This template demonstrates why battery capacity requirements vary dramatically based on user behavior profiles. A streaming-heavy user may consume 3–4× more energy than someone primarily using their hearing aids for quiet conversation.
3. Charging System Design
3.1 Charging Architecture Selection
The charging methodology directly impacts user experience, device reliability, and regulatory compliance. Two primary approaches dominate the hearing aid market:
Contact-Based (Galvanic) Charging
Traditional contact charging uses exposed metal electrodes on the hearing aid that mate with corresponding contacts in the charging case. This approach offers higher efficiency (85–92%) and lower cost but introduces reliability concerns:
- Corrosion susceptibility in humid environments or for users with skin moisture
- Physical wear from repeated insertion/removal cycles
- Cleaning requirements to maintain reliable electrical contact
- Design constraints that compromise waterproofing integrity
Wireless Inductive Charging
Inductive charging eliminates exposed contacts, enabling fully sealed device enclosures that achieve superior IP ratings (IP67–IP68). This technology offers particular advantages for aging users with reduced dexterity, as precise alignment becomes less critical. However, designers must account for:
- Lower efficiency (60–75%) generating heat during charging
- Coil alignment tolerance requirements affecting charge consistency
- Foreign object detection (FOD) to prevent heating from metallic debris
- Electromagnetic compatibility (EMC) considerations
3.2 Charging Circuit Design Requirements
Battery Management IC (BMIC) Selection
The BMIC serves as the critical safety and control interface between the power source and Li-ion cell. Essential features include:
- CC-CV Charge Profile: Constant current phase (0.5C–1C rate) transitioning to constant voltage (4.2V or 4.35V depending on chemistry) at 80–90% capacity
- Temperature Monitoring: Integrated NTC thermistor support with charge suspension above 45°C and below 0°C
- Charge Termination: Accurate -dV/dt or minimum current detection (<0.05C) to prevent overcharge
- Fault Protection: Overvoltage, undervoltage, overcurrent, and short-circuit protection with automatic recovery
Thermal Management
Li-ion charging generates heat proportional to internal resistance and charge current. Safe charging protocols must monitor cell temperature and reduce current when thresholds are exceeded. For inductive systems, thermal runaway protection should suspend charging when temperatures exceed 45–50°C.
Charge Rate Optimization
While faster charging improves user convenience, aggressive charge rates (1C+) accelerate battery degradation and generate excessive heat. Hearing aid applications should target moderate charge rates (0.3C–0.5C) that complete a full charge in 2–3 hours while maximizing cycle life.
4. Power Validation and Testing Methodology
4.1 Standardized Test Protocols
IEC 60118 Series Compliance
The IEC 60118 standards define measurement methodologies for hearing aid electroacoustic characteristics, including battery current consumption testing. Compliance requires:
- Reference Test Mode: Standardized input signals (e.g., 60 dB SPL broadband noise) and gain settings
- Measurement Accuracy: Current measurement precision to ±1% or better
- Environmental Conditions: Testing at 23±2°C, 45–75% relative humidity
- Stabilization Periods: Minimum 30-minute stabilization at test conditions before measurement
4.2 Advanced Power Analysis Equipment
Modern battery testing systems for hearing aids must support the extreme dynamic range of current consumption—from microampere sleep states to tens of milliamperes during wireless transmission. Professional-grade equipment specifications include:
Microcurrent Measurement Capabilities
- Current Range: 0.1 µA to 100 mA with seamless ranging
- Resolution: 100 nA minimum to capture sleep state currents
- Accuracy: ±0.02% of full scale for precise capacity validation
- Sampling Rate: ≥1 kHz to capture transient power events
Cycle Life Testing Infrastructure
Automated cycle testing systems must support:
- 65,000+ charge/discharge cycles with programmable profiles
- Multiple termination conditions (capacity fade, impedance increase, safety thresholds)
- Temperature-controlled chambers (-20°C to +60°C)
- Statistical analysis and degradation modeling
4.3 Real-World Usage Simulation
Beyond standardized tests, validation must simulate realistic usage patterns:
Usage Profile Testing
Develop representative daily usage scenarios based on user research:
- 8 hours quiet environment + 2 hours streaming + 14 hours standby
- 6 hours speech-in-noise + 1 hour calls + 17 hours standby
- Variable duty cycles that stress-test thermal management
Environmental Stress Testing
- Temperature Extremes: Verify operation at -10°C (reduced capacity) and +45°C (thermal protection activation)
- Humidity Exposure: 85% RH conditioning to validate sealing integrity
- Mechanical Stress: Drop testing and vibration to detect battery disconnections or connector degradation
5. Regulatory Compliance and Safety Validation
5.1 Battery Safety Standards
Medical devices containing lithium-ion batteries must satisfy stringent safety requirements. The primary standards include:
IEC 62133-2:2017 (Secondary Cells and Batteries)
This standard specifies safety requirements for portable sealed secondary lithium cells and batteries, including:
- Continuous Low-Rate Charging: Verify stability under prolonged trickle charge
- Vibration and Mechanical Shock: Simulate transportation and handling stresses
- Thermal Abuse Testing: Exposure to extreme temperatures (75°C+ for hours)
- Crush and Impact: Mechanical integrity under deformation forces
- Overcharge and Forced Discharge: Abuse tolerance beyond normal operating limits
- External Short Circuit: Response to terminal shorting under controlled conditions
UN 38.3 (Lithium Battery Transport)
For products shipping via air or sea freight, UN 38.3 mandates:
- Altitude simulation (11.6 kPa pressure equivalent to 15,000m)
- Temperature cycling (-40°C to +75°C)
- Vibration (7–200 Hz sinusoidal sweep)
- Shock (50g half-sine pulses)
- External short circuit (55°C environment)
- Impact/crush (depending on cell mass)
- Overcharge (2× rated voltage)
- Forced discharge (series connection reversal)
5.2 Medical Device-Specific Requirements
IEC 60601-1 (Medical Electrical Equipment)
Hearing aids as Class II medical devices must comply with:
- Leakage current limits (<100 µA normal condition, <500 µA single fault)
- Dielectric strength testing (1 kV–4 kV depending on insulation class)
- Fire enclosure requirements for battery compartments
- Risk management documentation per ISO 14971
FDA 21 CFR Part 820 (Quality System Regulation)
Manufacturing processes must demonstrate:
- Design controls with documented verification and validation
- Process validation for battery assembly and charging systems
- Corrective and preventive action (CAPA) procedures
- Device history records (DHR) traceable to individual battery lots
6. Design Checklist Summary
- Battery Selection and Integration
- Power Budget and Modeling
- Charging System Design
- Validation and Testing
- Regulatory and Safety
7. Conclusion
Designing rechargeable hearing aids that deliver consistent, reliable battery life requires moving beyond datasheet specifications to embrace rigorous power budget modeling and comprehensive validation protocols. The significant gap between manufacturer current consumption claims and real-world performance—often 50% or more under streaming conditions—demands that engineering teams conduct independent measurement campaigns using representative usage scenarios.
Success in this domain depends on three pillars: selecting high-quality lithium-ion cells with proven medical device track records, implementing intelligent power management that extends cycle life through conservative charging profiles, and validating designs against both international standards and real-world usage patterns. By following the comprehensive checklist outlined in this article, design teams can mitigate the risks of premature battery degradation, thermal safety incidents, and user dissatisfaction while delivering hearing aids that meet the demanding expectations of modern consumers.
The future of hearing aid power systems lies in continued advances in battery chemistry (solid-state technologies promising higher energy density), more efficient wireless protocols (LE Audio with LC3 codec reducing streaming power), and AI-driven power management that predicts user patterns to optimize energy consumption. Organizations that master the fundamentals of power budget analysis and validation today will be best positioned to integrate these emerging technologies as they mature.
